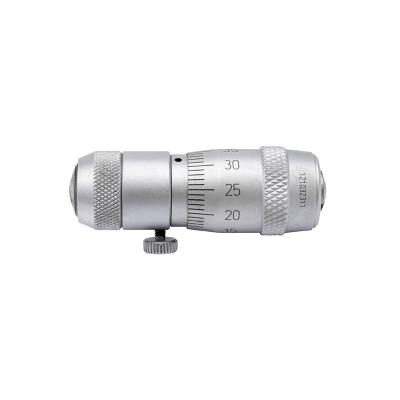

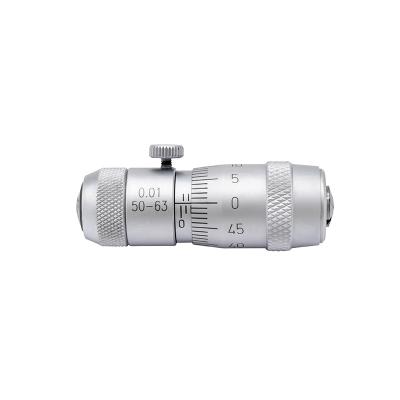

Tubular Inside Micrometer for internal measurement 50-1500x0,01 mm with interchangeable extension rods

Item no.

10272665

EAN

5708004074601

Customs tariff

9017300000

Sales Quantity

1

Add to Cart Request price

Product description

Tubular inside micrometer for internal measurement with replaceable extensions for large measuring ranges up to 1500 mm. Extensions rods are pipe design with carbide-coated measuring surfaces.

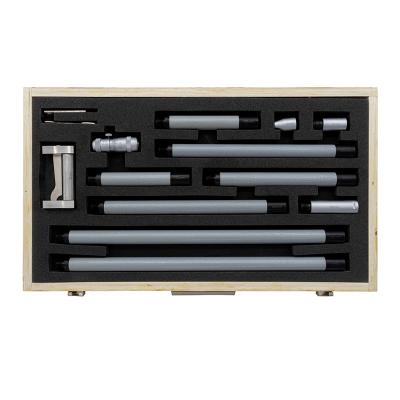

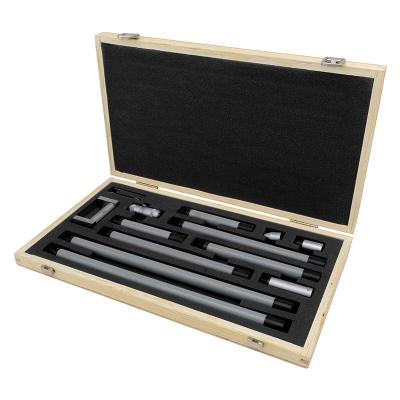

Delivered in wooden box.

Accuracies:

50-100mm ±0,005 mm. 100-150mm ±0,006. 150-200mm ±0,007. 200-250mm ±0,008.
250-300mm ±0,009. 300-350mm ±0,0010. 350-400mm ±0,0011. 400-450mm ±0,0012.
450-500mm ±0,0013. 500-550mm ±0,0014. 550-600mm ±0,0015. 600-650mm ±0,0016.
650-700mm ±0,0017. 700-750mm ±0,0018. 750-800mm ±0,0019. 800-850mm ±0,0020.
850-900mm ±0,0021. 900-950mm ±0,0022. 950-1000mm ±0,0023. 1000-1050mm ±0,0024.
1050-1100mm ±0,0025. 1100-1150mm ±0,0026. 1150-1200mm ±0,0027.
1200-1250mm ±0,0028. 1250-1300mm ±0,0029. 1300-1350mm ±0,0030.
1350-1400mm ±0,0031. 1350-1400mm ±0,0032. 1400-1450mm ±0,0033.
​1450-1500mm ±0,0034.

  • Measuring range 50-1500 mm
  • Interchangeable extension rods
  • Sets can be put together for alternative length
Product specifications
  • Resolution
    0,01 mm
  • Measuring range
    50-1500 mm
  • Gross weight
    2.360 kg
  • Net weight
    1.720 kg
